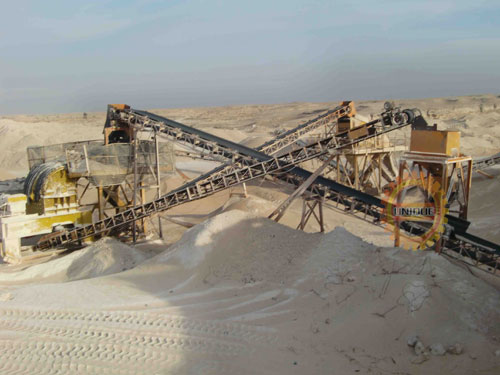

300-350 TPH Stone Crushing Plant

  • Max. Feeding Size: 750mm

  • Capacity: 300-350 t/h

  • Engine Power: 460kw

  • Materials: Granite, marble, basalt, limestone, quartz stone, river gravel...

  • Field: Ore crushing, production of construction aggregates, water conservancy...
The above for reference only, please click below to know more.
■ Advantages

Advantages of Stone Crushing Plant
1.  Low energy consumption
2.  Customized equipment configuration
3.  Efficient automatic production
4.  Simple operation & installation
5.  well-crushed stone shape

■ Working Principle

1.  The third largest Jaw crusher model PE900X1200 works as primary crushing, its over sized feed opening &  unique Jaw plates make it readily crush 750mm into small sizes.
2. All the spare parts assembled are of top quality (bearing, motor, eccentric shaft, screen mesh, etc.), this ensure the stable working status for all the equipments.
3.  Secondary crushing process is performed by two sets of impact crusher model PF-1315 which is superior in its larger feed opening and rotor, the final product sizes can be controlled through regulating impact-bracket.
4. Tertiary crusher such as VSI or washing machine may work as additional mining equipments to diversify the final products, meanwhile, tailor-made dust catcher or dust cover maybe the last step to perfect this line on the basis of environmental protection.
5. The final products are of regular cube shape, high compressive strength, needle shape take up small proportion, no inner-cracks. They are quite suitable for speedway, bridge, tunnel and other construction projects.

■ Parameters

Main Components of 300~350T/H Stone Crushing Plant:
Vibrating Feeder ZSW 600 X 130
Max Feeding Size: ≤7500mm
Power: 22 kw

Jaw Crusher PE-900 X 1200
Max Feeding Size: ≤750mm
Power: 110kw

Impact Crusher PF-1315 / 2 units
Max Feeding Size: ≤500mm
Power: 132kw x 2

Vibrating Screen 3YK1854 / 2 units
Sep1=40mm  Sep2=20mm  Sep3=5mm
Power: 22kw x 2

Auxiliary Components of 300-350 TPH Stone Crushing Plant
Belt Conveyor
B1200 X 19M
B1000 X 20M
B1000 X 20M
B1000 X 26M
B650 X 18M
B650 X 8M + B650 X 18M
B650 X 8M + B650 X 18M

Control system
Electronic Control Cabinet
