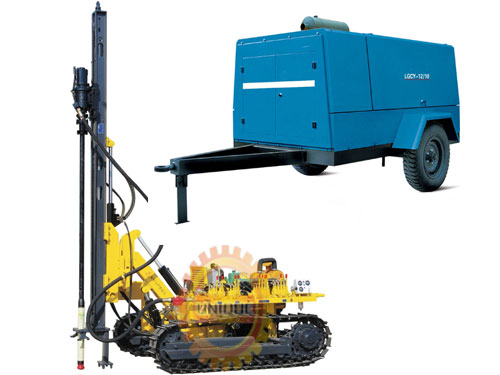

KG910B Low Wind Pressure Crawler Down the Hole Drill Rig Machine for Sale

2013-06-24 10:41:26

KG910B is improved by KY100 down the hole drill rig machine. It has the advantages of simple structure and stable performance. It has advanced hydraulic system, travelling parts and gyrator. The rotating speed and thrust speed of the down the hole drill rig is more quickly. Furthermore, Its motor has long service and good performance.

Specification of the matched compressor:
LGCY-10-10 Diesel Mobile Screw Compressor
Discharge pressure: 1.0MPa
Air displacement: 10m³/min
Power: 93kW

Comparison between KY100 and KG910B Down the Hole Drill Rig Machine for Sale

	KY100	KG 910B	Advantages
Driving force	YC2100	YC2108
Travel parts	QJM Motor (Direct connection)	Mortar+Reducer structure	Reduce pressure of motor, improve the service life of the motor
Travel pressure	14-16 Mpa	11 Mpa
Hydraulic system	16 Pump	25 Pump ，quick rotating/quick lifting valve group, new type flow dividing valve	Increase the flow
Rotation motor	Steel ball motor	Gerotor motor	Prolong motor’s service life
Rotation speed	70 r/min(1700)	105r/min (diesel engine 1700r/min) 120r/min (diesel engine 2200 r/min)	Increased by 50%
Advance speed	280mm/s	390mm/s	Increased by 40%

This down the hole drill rig is widely used for drilling blast hole or bore hole on the rock in the stone quarry plant.
Our company is a professional and reliable down the hole drill rig machine supplier. More information about our machine, please feel free to contact with us by phone or e-mail at any time!
