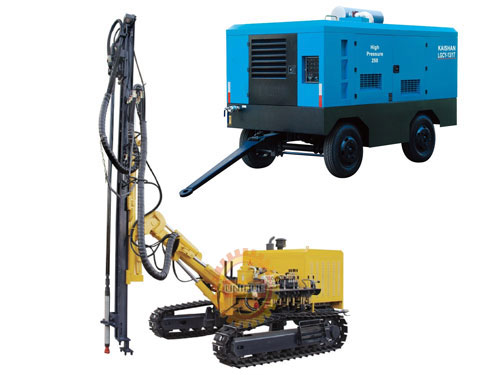

KG925 Crawler Rock Drill for Sale

2013-06-26 10:41:00


KG925 Crawler Rock Drill is improved by KG920B Crawler Drill. It has some new innovative design in the following parts: guide rail, gyrator, track frame, operation panel.

Features of KG925 Crawler Rock Drill for Sale:
1.    Extended guide rail, thrust stroke up to 3.4m, shallow hole without arbors
2.    Adopts cycloid motor gyrator with high rotating speed and long service life
3.    The rotating speed can reach 140 r/min, if the rock is softer, its speed will be much quicker; if the rock is very hard, just low down the speed by operating the accelerator and slow block.
4.    The operating handle is centralized layout equipped with footstep. It has neat appearance and is easy to operate.
5.    Enhanced track frame which is similar with the excavator has good appearance and is sturdy and durable.

Main Specification of matched Diesel mobile screw compressor:

Model

Discharge pressure

Air displacement

Power

LGCY-13/13

1.3MPa

13m³/min

132kW

LGCY-13/17

1.7MPa

13m³/min

158kW



Main Specification of KG925 Crawler Rock Drill for Sale

Rock hardness

f=6-20

Hole diameter(mm)

φ80-115

Drill depth(m)

25

Walking speed (km/h)

02.5

Grade-ability( °)

30

Min. Ground clearance(mm)

320

Diesel Engine(Yuchai)

YC4D80(58Kw/2400rpm)

Overall Dimension (L*W*H)(mm)

5680×2130×2100

Total Weight (Kg)

4600

Pressure (Mpa)

0.7-1.7

Carriage stroke(mm)

3400

Max. Carriage pitch angle (°)

185

Max. Carriage swing angle(°)

Right 100º(45º);   left: 5º(45º)

Max. Drill arm swing angle

Right 45º ;  left: 45º

Compensation Stroke(mm)

900

Rotating speed(rpm)

0-140

Rotary torque(N.m)

1400

elevating power(KN)

25

Drill rod diameter(mm)

φ64(Standard Configuration) φ76

Drill rod length(mm)

3000


Our company is a professional and reliable supplier of crawler rock drill. More information about our blast hole drill for stone quarry plant, please feel free to contact with us by phone or e-mail at any time!
